When it comes to improving front-end grip and high-speed stability, few modifications offer as much performance per dollar as a properly designed front splitter. While many enthusiasts spend hundreds—or even thousands—on carbon fiber aero, a DIY plywood splitter can provide impressive results at a fraction of the cost.

At Kahlwerks, we appreciate functional modifications that prioritize performance over hype. This guide walks through the fundamentals of building a track-focused front splitter using simple materials and proven design principles.

What Does a Front Splitter Do?

A front splitter is an aerodynamic device mounted to the lower front edge of the vehicle. Its primary purpose is to manage airflow underneath the car.

As air hits the splitter, pressure builds on top while airflow underneath is restricted. This creates a pressure difference that generates downforce on the front axle, improving:

  • Front-end grip
  • High-speed stability
  • Turn-in response
  • Driver confidence
  • Overall aerodynamic balance

For track-driven vehicles, a splitter can make a noticeable difference in cornering performance.

Materials You'll Need

One of the biggest advantages of this design is its affordability and ease of replacement.

Recommended Materials

  • 9mm Birch Plywood
  • Aluminum Flat Bar
  • Aluminum Angle Brackets
  • Splitter Support Rods
  • Flathead Hardware
  • Paint or Edge Sealer
  • Jigsaw or Router
  • Drill and Basic Hand Tools

Estimated Cost: $150–$200

Compared to a carbon fiber splitter that can easily exceed $800–$1,500, this setup delivers exceptional value.

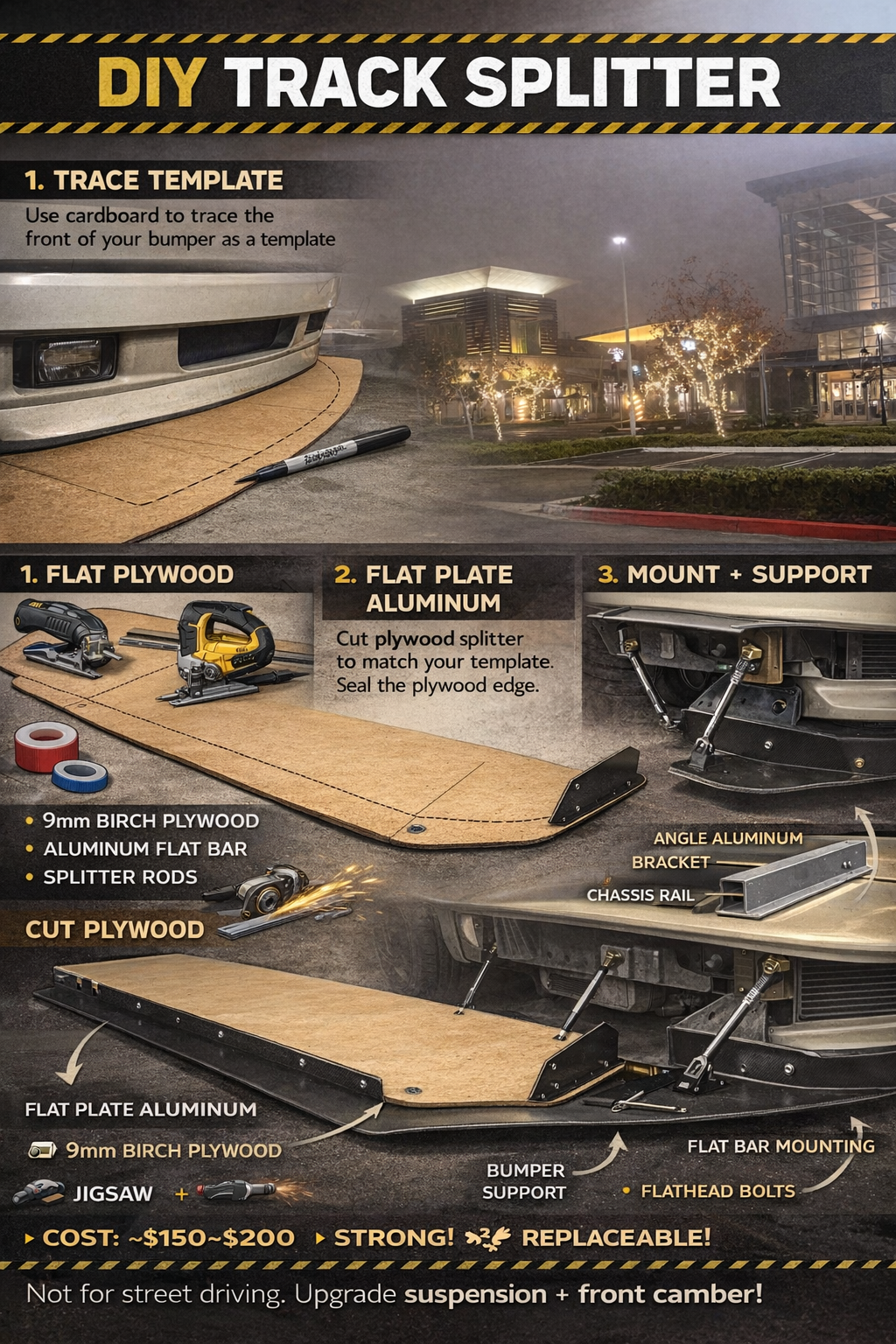

Step 1: Create a Template

Start by tracing the shape of your front bumper using cardboard.

This step allows you to:

  • Fine-tune the splitter design
  • Check fitment before cutting
  • Adjust extension length
  • Save money by avoiding mistakes

Take your time here. A precise template leads to a cleaner final product.

Step 2: Cut the Splitter

Transfer your template onto the birch plywood.

Using a jigsaw or router:

  1. Cut along the outline.
  2. Smooth the edges.
  3. Test-fit the splitter under the vehicle.
  4. Seal the plywood edges to protect against moisture.

Many track enthusiasts also paint the splitter black for a cleaner, motorsport-inspired appearance.

Step 3: Reinforce with Aluminum

While plywood provides the main structure, aluminum reinforcement dramatically increases durability.

Install:

  • Flat aluminum bars along the edges
  • Angle brackets at mounting points
  • Additional supports where needed

This prevents flexing and helps the splitter survive aggressive driving and occasional track abuse.

Step 4: Mount to the Chassis

One of the most common mistakes is mounting a splitter solely to the bumper.

The bumper cover is not designed to support aerodynamic loads.

Instead, mount the splitter directly to:

  • Chassis rails
  • Frame supports
  • Structural mounting points

Using aluminum brackets tied into the chassis ensures the splitter can handle downforce without damaging the bumper.

Step 5: Install Splitter Rods

Splitter rods provide additional support and help prevent flex at speed.

Benefits include:

  • Increased rigidity
  • Better load distribution
  • Improved durability
  • Professional motorsport appearance

For maximum effectiveness, the rods should connect to reinforced mounting locations rather than thin body panels.

Why Birch Plywood?

Many professional racing teams have used plywood splitters for decades.

Benefits include:

Cost Effective

Easy to replace after track incidents.

Durable

Surprisingly strong when reinforced correctly.

Easy to Fabricate

Can be cut with common tools.

Proven Performance

Widely used in club racing, time attack, and grassroots motorsports.

Is This a Street Mod?

Not necessarily.

Large front splitters sit low to the ground and are vulnerable to:

  • Driveways
  • Speed bumps
  • Road debris
  • Uneven pavement

This style of splitter is best suited for:

  • Track days
  • Time attack
  • Autocross
  • Dedicated performance builds

If you're running aggressive aero, upgraded suspension and proper front camber settings are highly recommended.

Final Thoughts

A DIY splitter proves that performance doesn't have to be expensive. With basic fabrication skills and around $200 in materials, you can build a functional aerodynamic upgrade that delivers real benefits on track.

Whether you're building a dedicated track car, time attack machine, or simply experimenting with aero, a properly mounted plywood splitter is one of the most effective performance upgrades you can make.

At Kahlwerks, we're passionate about practical solutions that improve performance while keeping enthusiasts on the road—and on the track.
